WEIPU WY series MALE + FEMALE

Description

At E-Racing we tested a ton of connectors for medium and low current applications. The best we found for <30A applications were the WEIPU WY series.
We use these for charging and serial connection on our 25 kW drivetrain which endures hard-core racing in all weather conditions.

The WEIPU WY we have available are all IP67 rated and come with solder termnials for easy assembly.

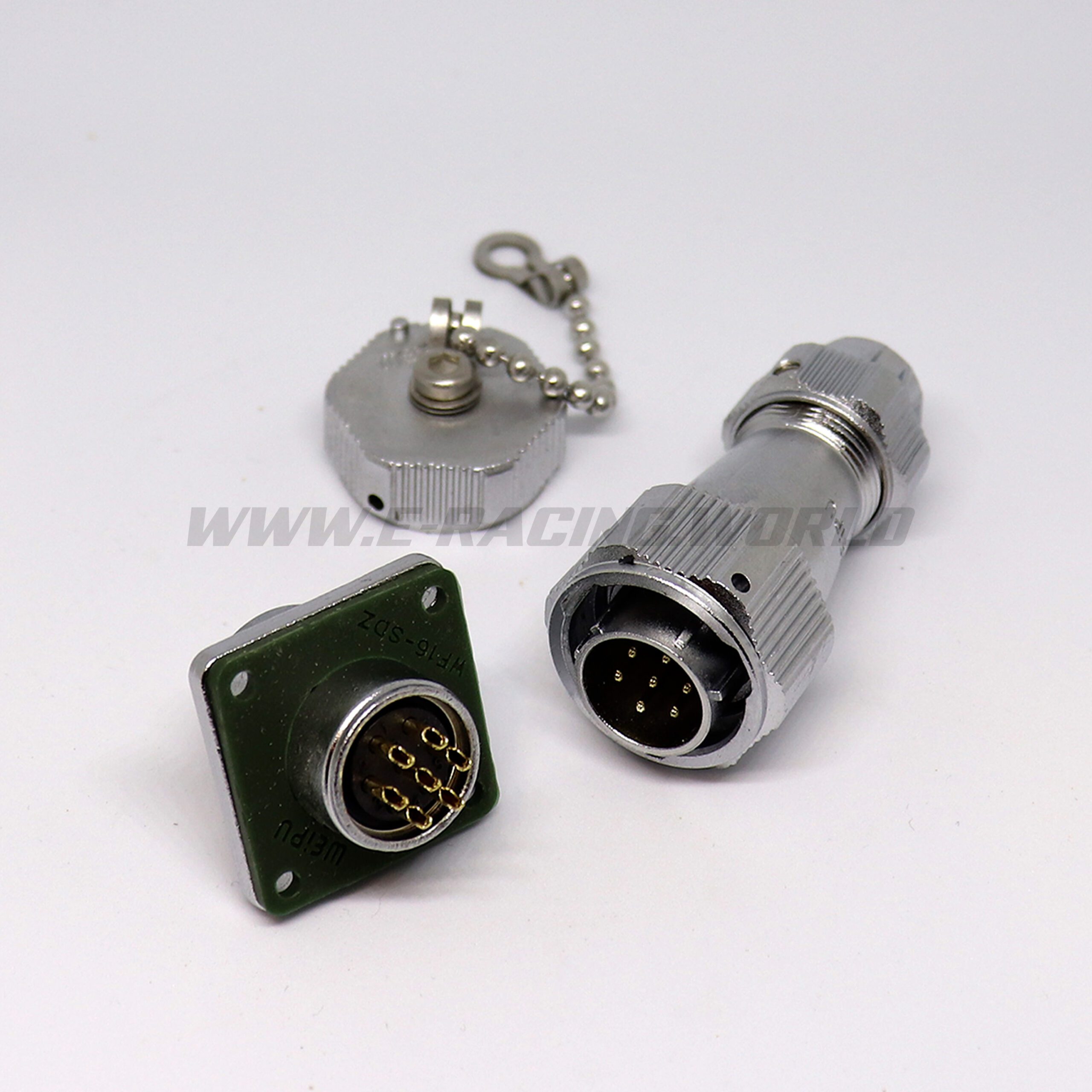

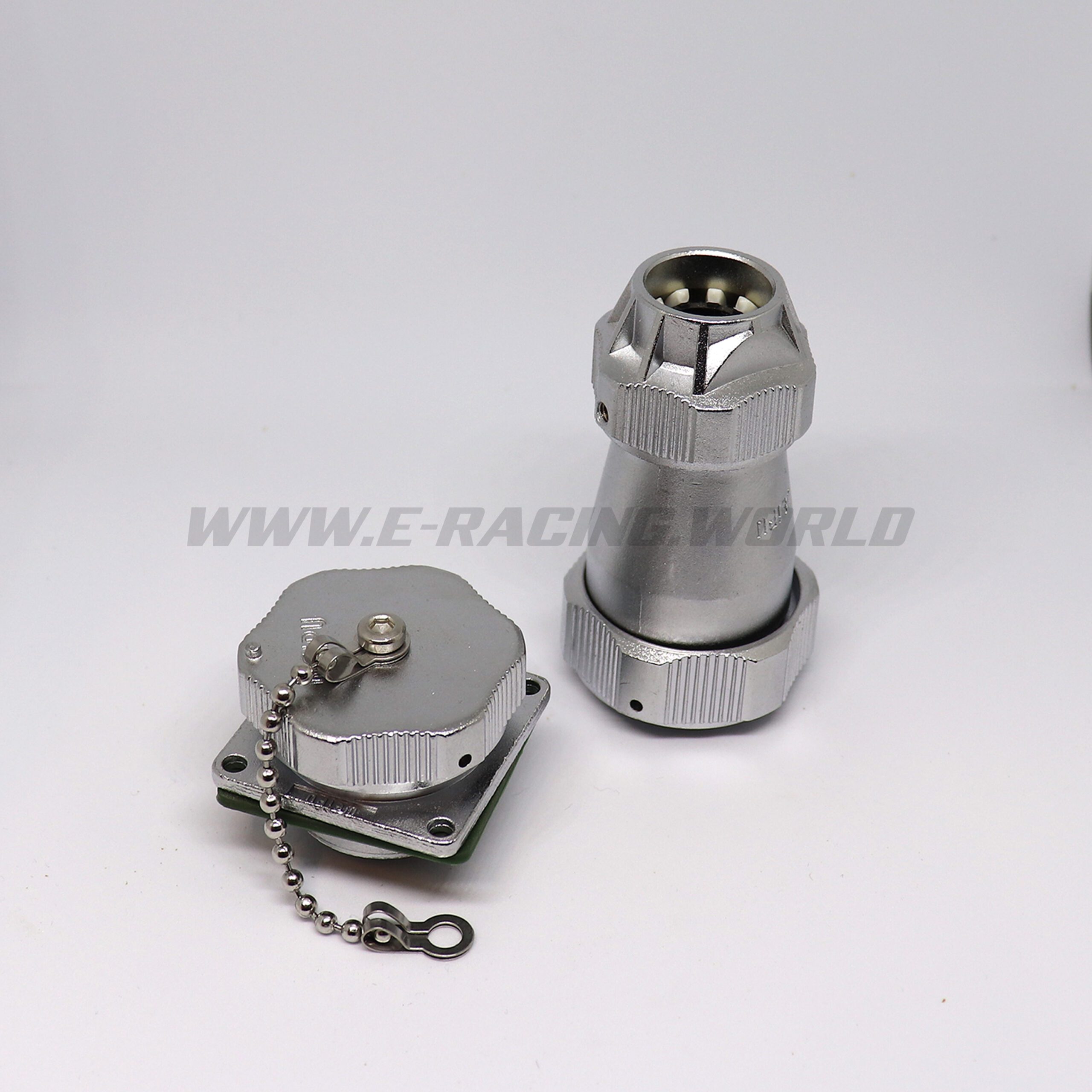

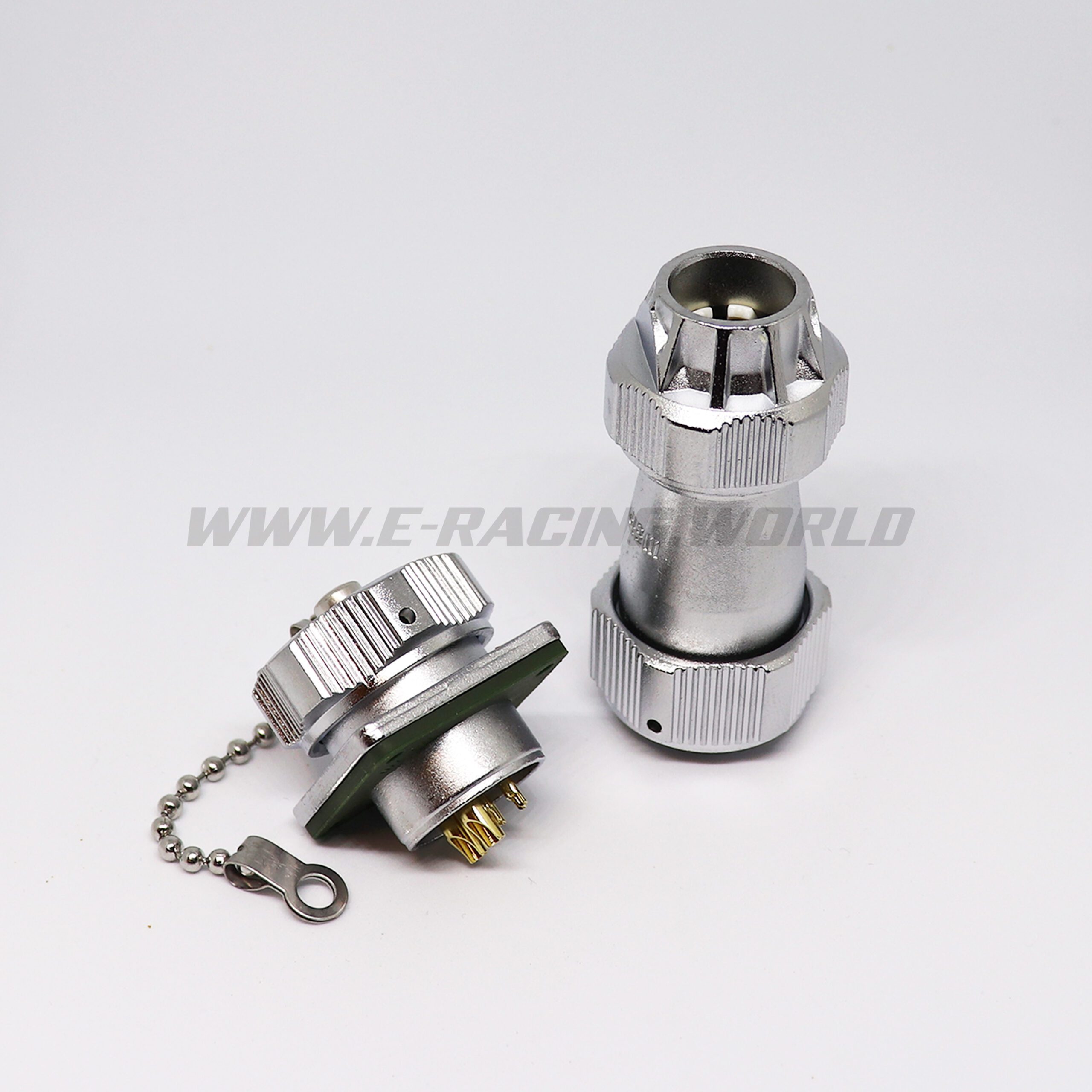

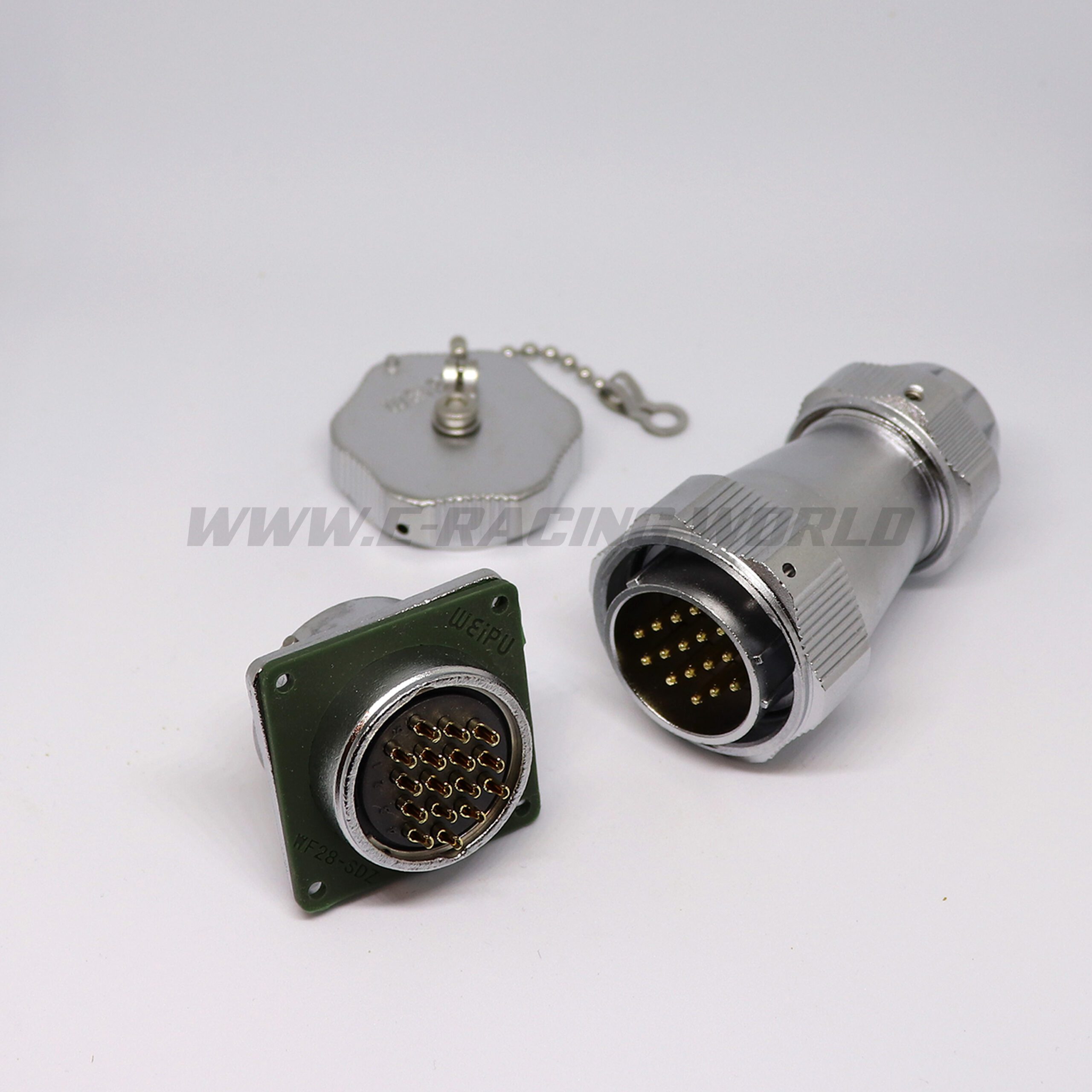

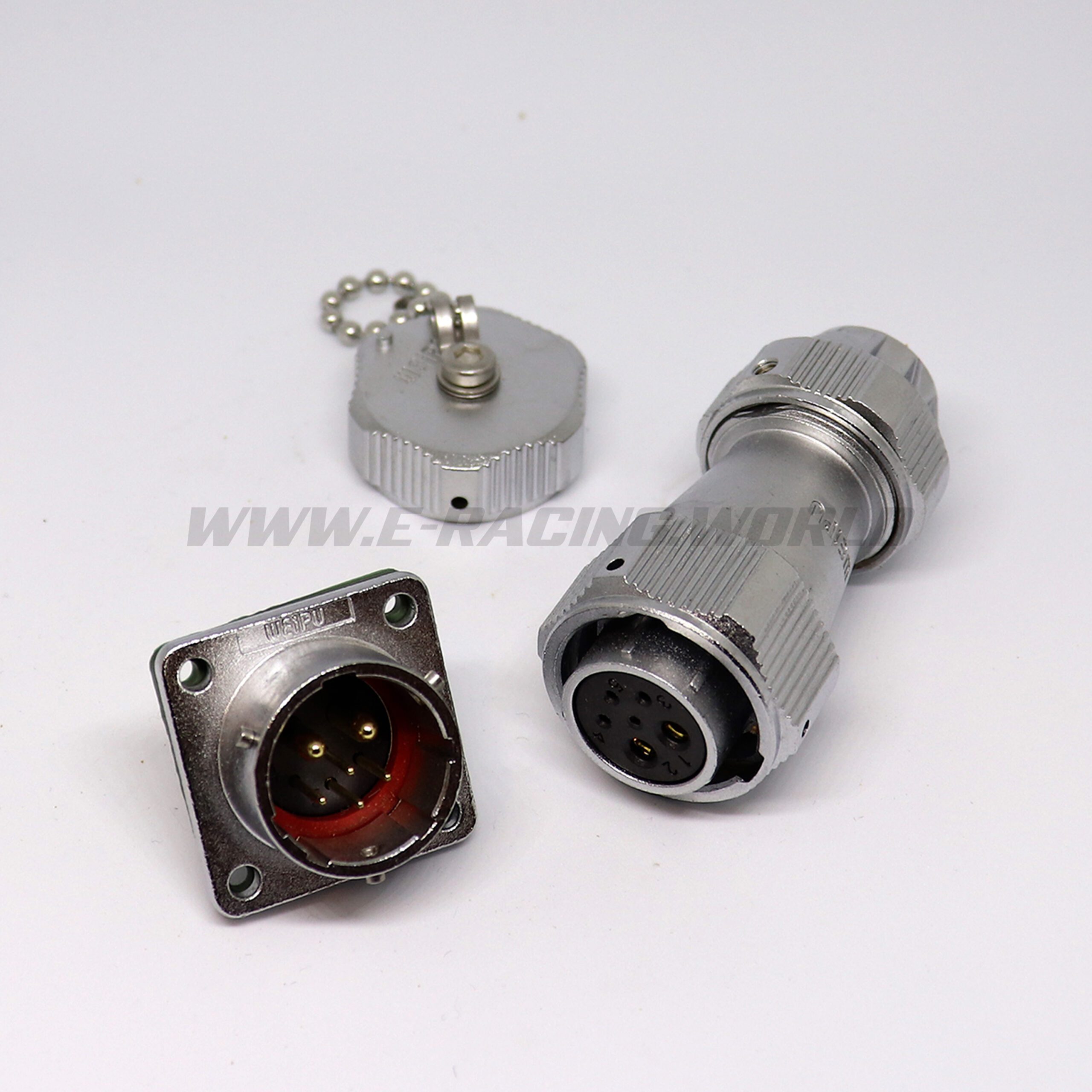

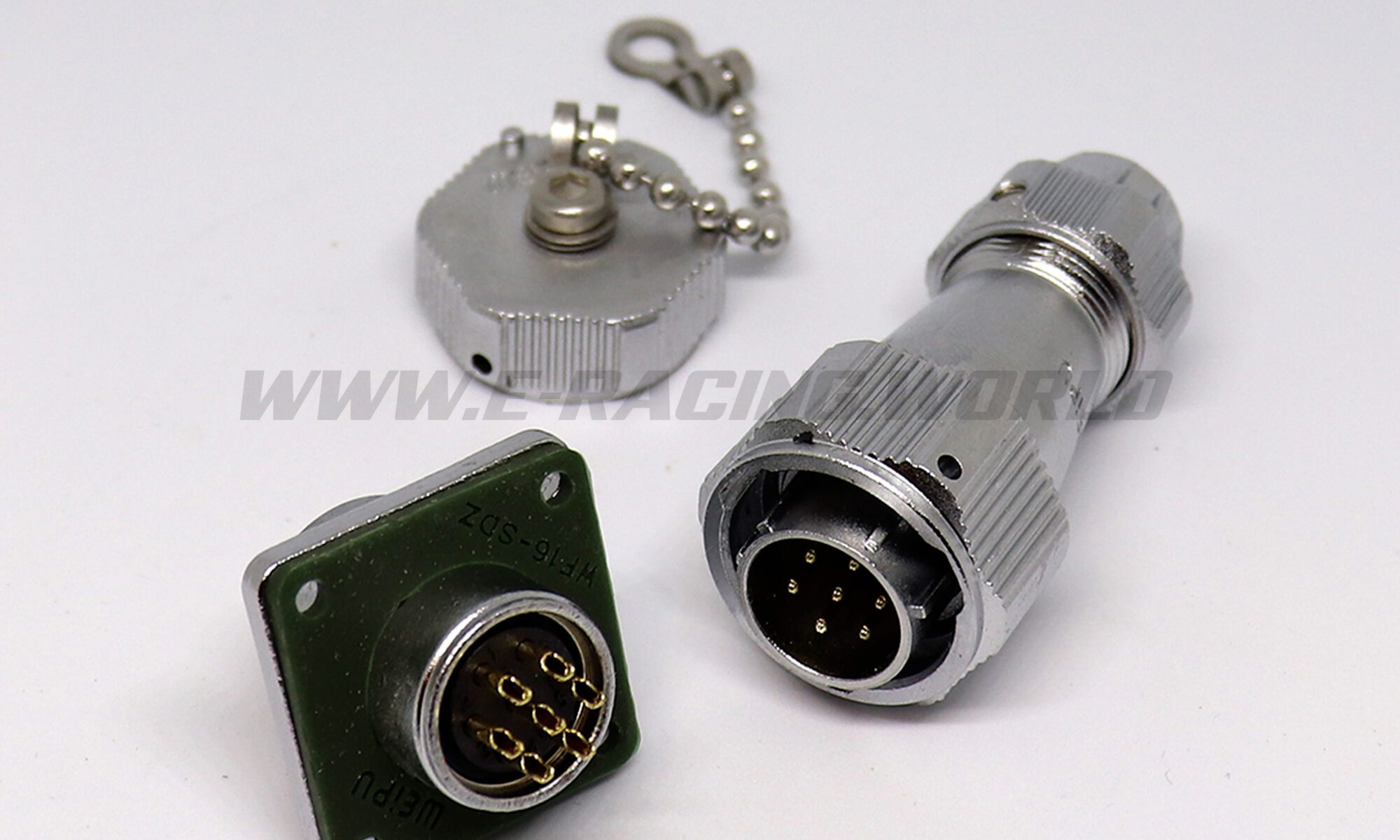

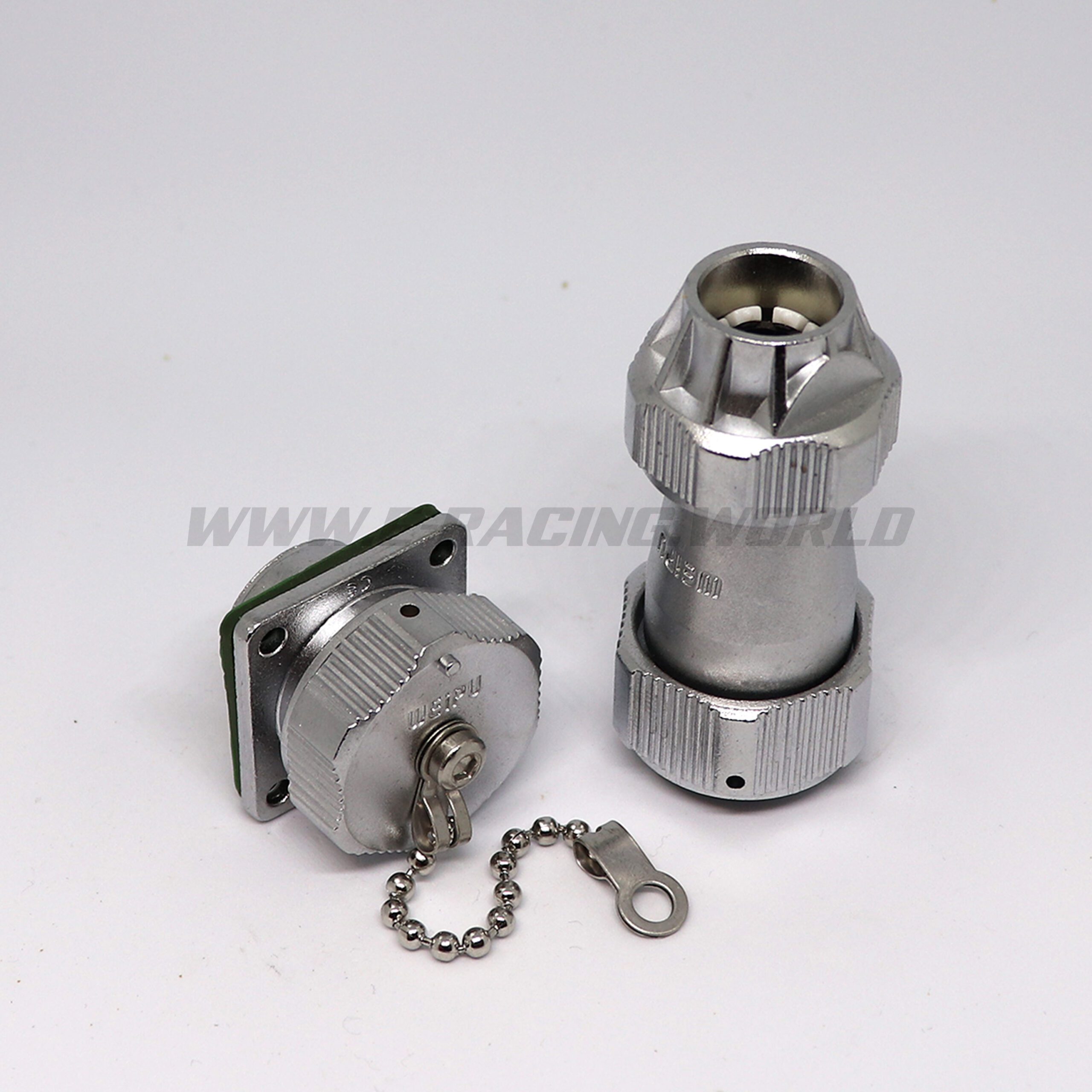

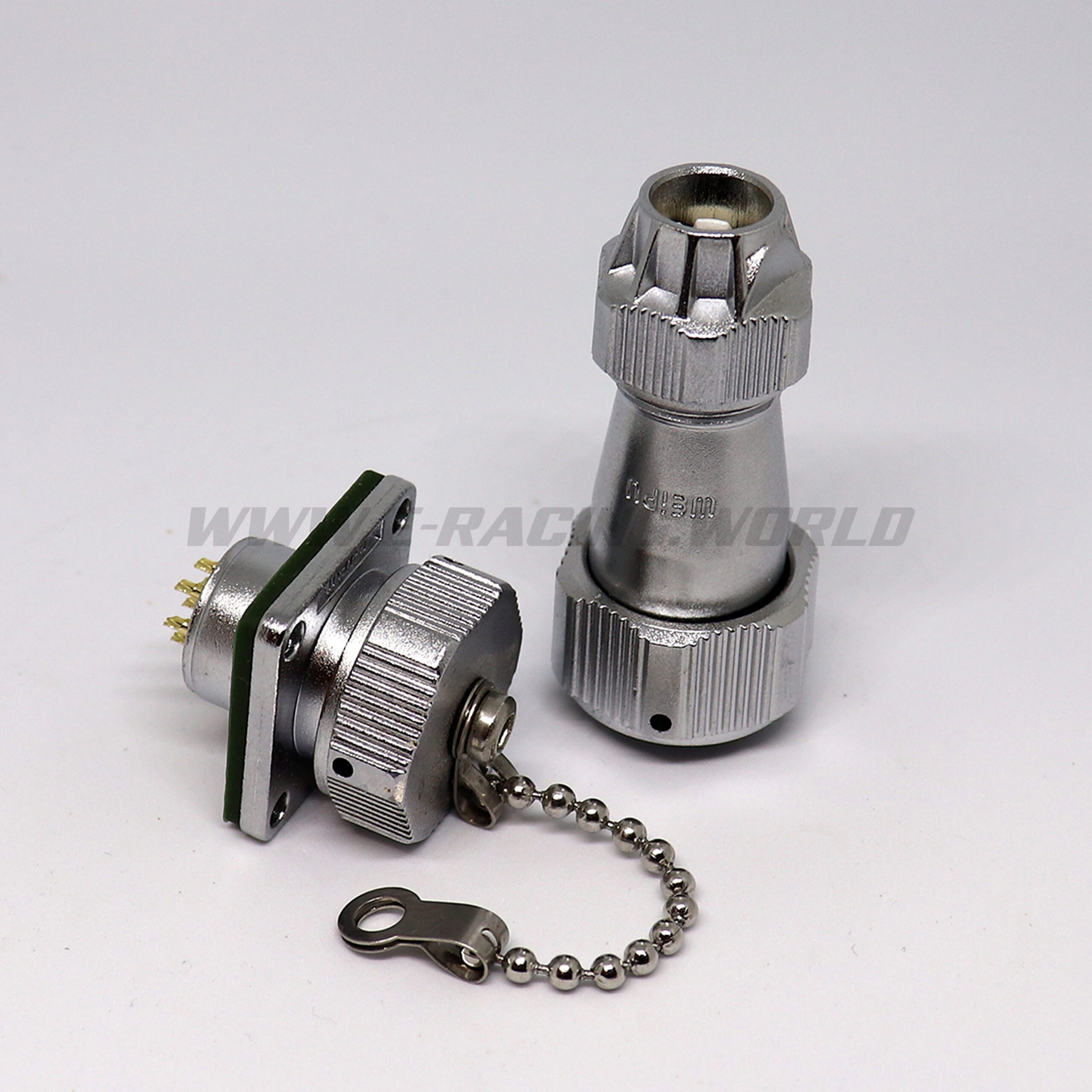

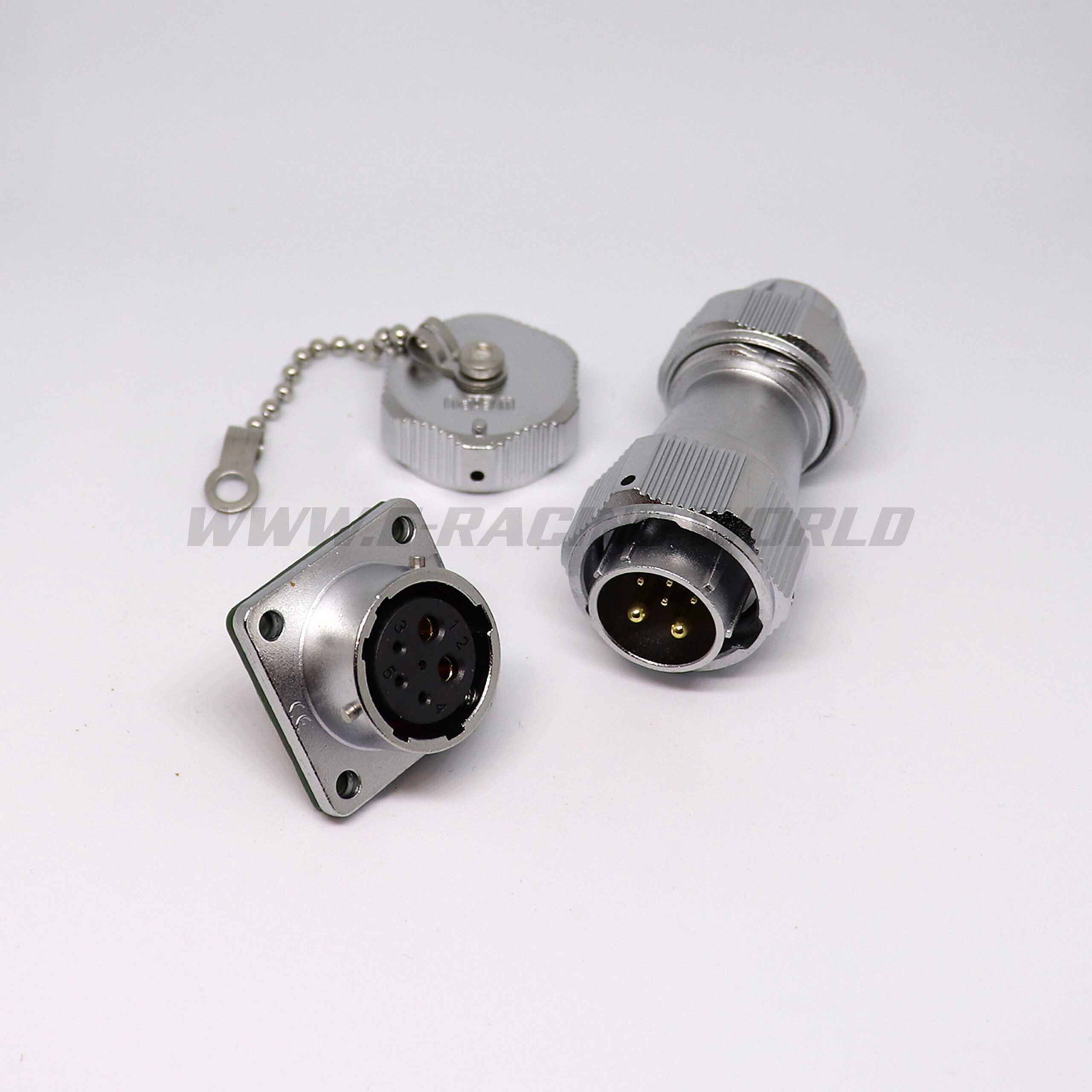

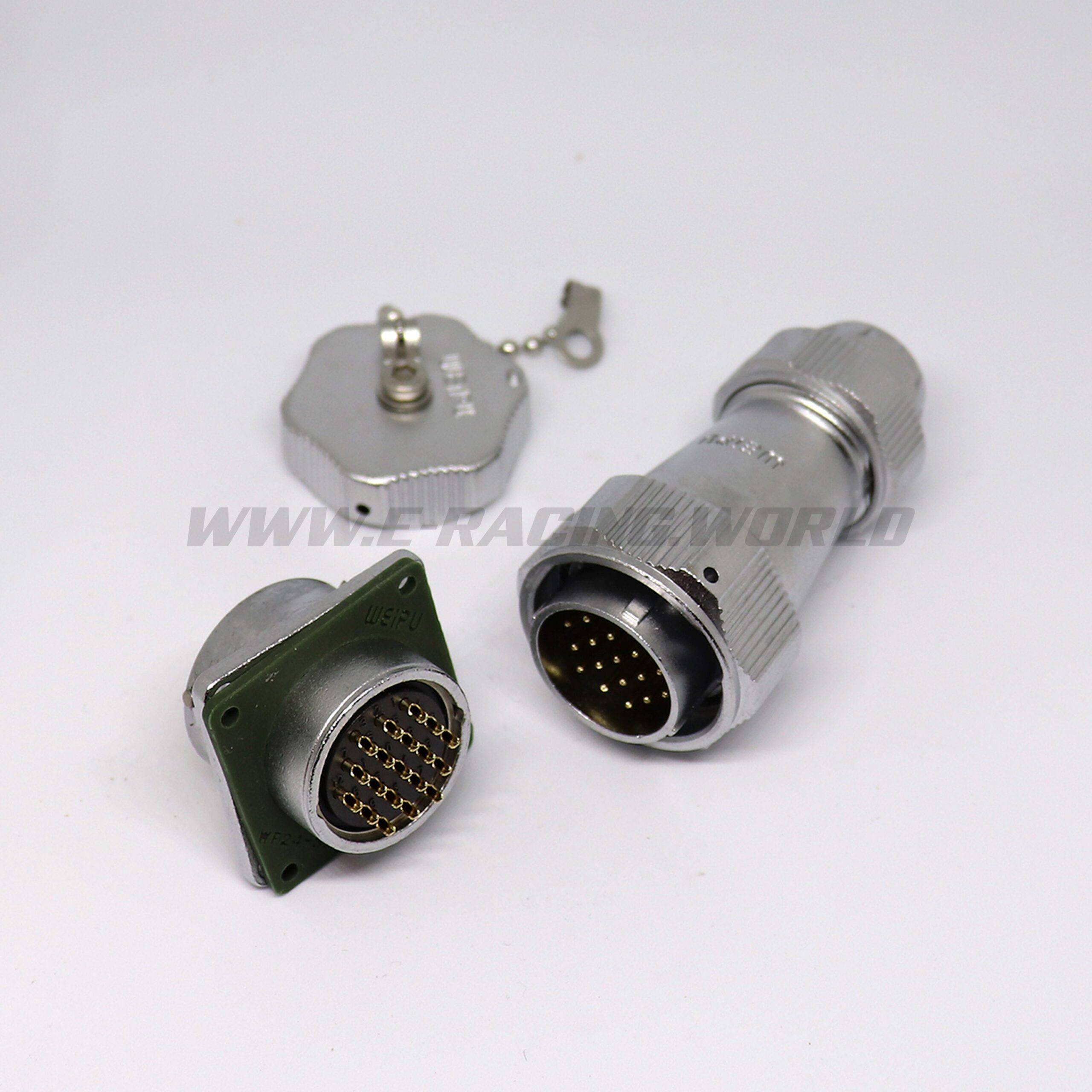

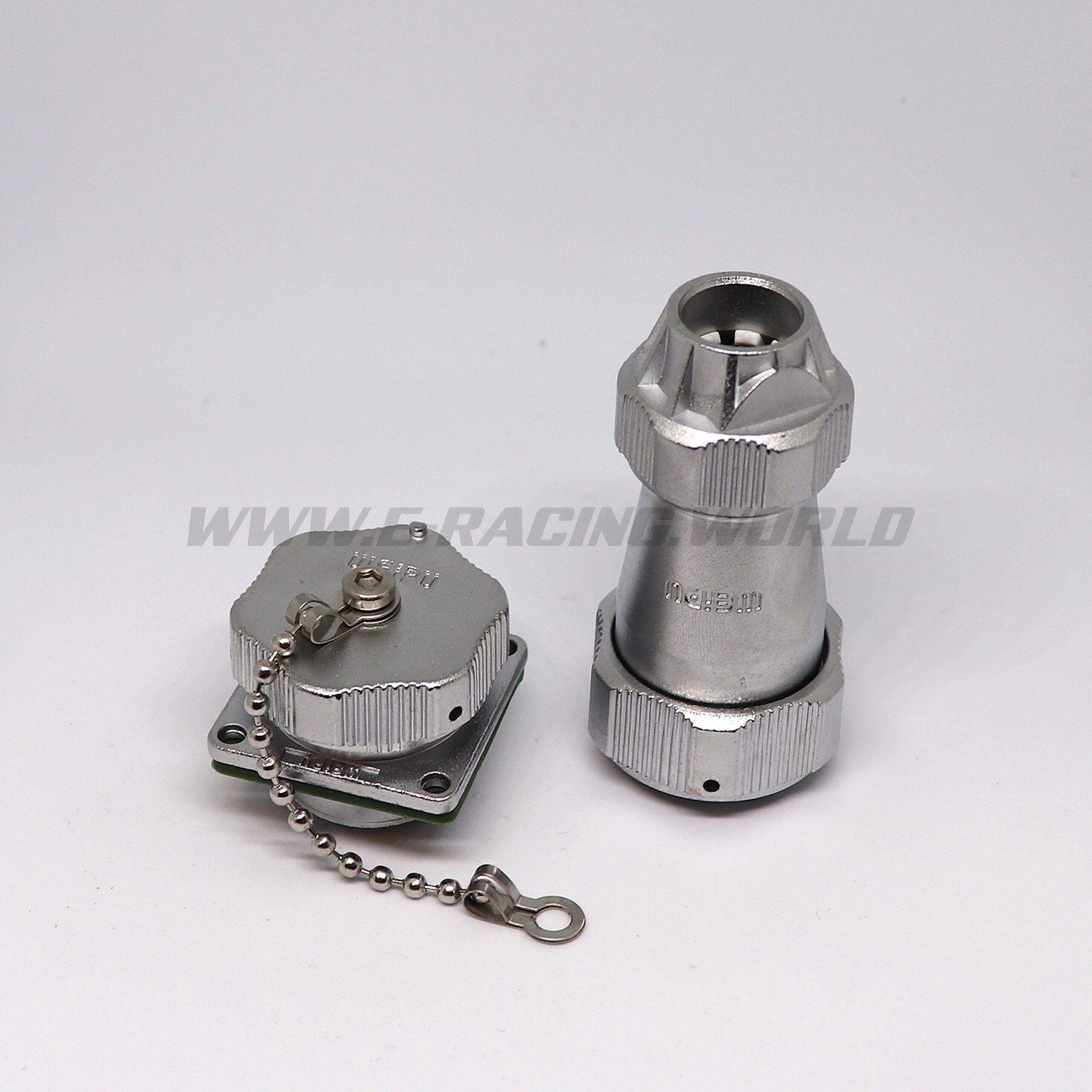

All connectors are complete and are supplied with male and female part as well as a receptacle cover (see photos). Panel mount is square flange type (Z) with four mounting holes (see photos). Connector plug is TE type (see photo with dimensions). The whole datasheet for all WEIPU WY connectors is attached under the Documents.

The following connectors are available for direct purchase, however we are dealing directly with WEIPU so we can get any WEIPU connector you need. Just reach out to us!

WY16: 7 pin – current rating 10A
WY20: 6 pin – current rating 30A (2 pin) / 5A (4 pin) – Ideal for charging/discharge and serial communication with BMS
WY24: 19 pin – current rating 5A
WY28: 16 pin – current rating 10A
